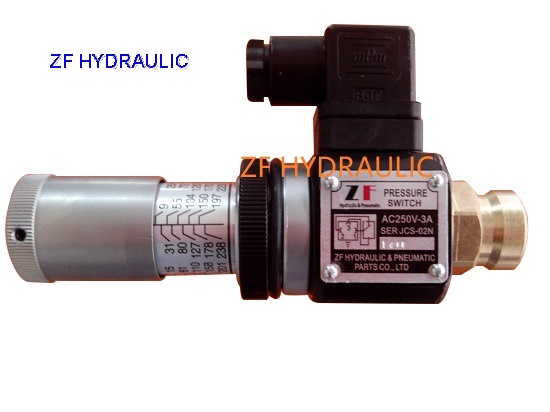

Pressure switch JCS-02N
JCS-02N/02NL/02NLL/H type pressure switch
Specificatin:
|
Model
|
Rated pressure
|
Max pressure
|
Weight
|
|
JCS-02N
|
20-210 kg/cm2
|
230 kg/cm2
|
1.0kg
|
|
JCS-02NL
|
15-60 kg/cm2
|
230 kg/cm2
|
1.0kg
|
|
JCS-02NLL
|
5-40 kg/cm2
|
60 kg/cm2
|
1.0kg
|
|
JCS-02H
|
20-500 kg/cm2
|
600 kg/cm2
|
1.0kg
|
|
Max voltage/current
|
Min voltage/ current
|
|
250V/3A 125V/5A
|
DC 24V/ 160 mA
|

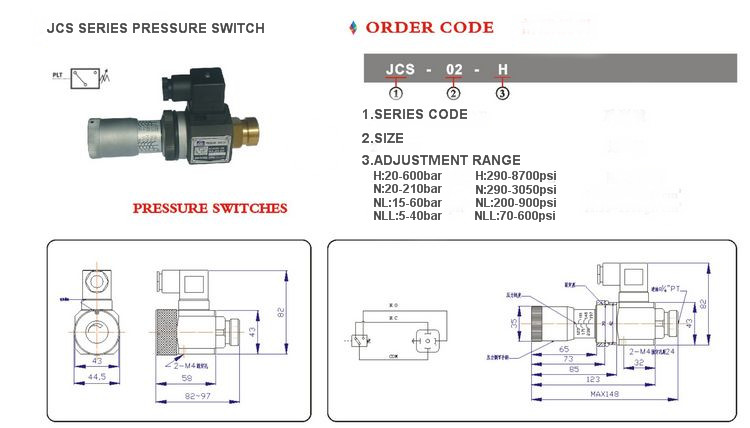

Outside size:
Product introduction:
Pressure switch JCS series built-in micro switch, induction from hydraulic system pressure convey the electrical signal to electromagnetic directional valve or electric motor make it change direction or warning, closed circuit, in order to achieve the effect of system protection.
Pressure switch is the use of liquid pressure to open/close electrical contact hydraulic electrical interface element. When the system pressure to achieve value of pressure switch setting , a signal, make electrical components (such as electromagnet, motor, time relay, electromagnetic clutch, etc.) action, make the oil pressure relief, reversing, execute component realize order action, or closed motor make the system to stop working, and the safety protection, etc.
Our company production of all kinds of pressure switch has small volume, advanced craft, small flow resistance, complete product specification , 0-500 kg/cm2 pressure scope, complete installation: female, male, plate installation, pipe installation! Reliable quality, long life and other characteristics, widely used in various industries of automation control field, have won the user's praise from all walks of life.
ZF HYDRAULIC in the spirit of "high quality, best service, strives for the development" the spirit of "high-quality products, reasonable price, considerate service" concept and responsible, public principle to your promise:
We can assure you that the factory's products are in accordance with the relevant national standard production and inspection, unqualified products will not be out of factory. Ensure strict performance, cash products three guarantees, strictly implements national industrial product after-sales service relevant provisions.
Hydraulic pressure switch JCS-02, DNA-150K-06I; TAIWAN hydraulic pressure switch JCS-02N, DNA-250K-06I, DNA-250K-22B; JUN CHUNG SHING brand pressure switch JCS-02N; Made in Taiwan JUN CHUNG hydraulic pressure switch SER JCS-02N, DNA-100K-22B; Shenzhen factory of hydraulic pressure switches; High quality ,assured 2 years for the hydraulic pressure switch; Pressure switch has stock long time. Shanghai PTC 2019 pressure switches exhibition; Pressure switches custom-made in China.
Pressure switch factory manufacturing and exporter.
Beijing huade pressure switch type: HED4OP HED4OA/HED4OH HED1OA/basic parameters of the maximum working pressure: 50 mPa rated pressure: 0-5 0-0-10 to 35 mPa HED4OP15/350 z14 HED4OA15/350 z14 HED4OH15/350 z14 HED1OA40 HED1KA40/500/350
Direct selling pressure switch jcs-02n, oil port diameter:1/4pt ,Pressure specification: 70KG 210KG 350KG; Modular pressure switch sale MJCS-02W, MJCS-03W, JCD-02S pressure switch factory.
The processing of this pressure switch is customized, the brand is zhangfa (ZF), the model is jcs-02-h jcs-02-n, the scope of application is mechanical, the product alias is pressure switch, the material is iron-copper, the applicable medium is hydraulic oil, the nominal pressure is 0.5-35 (MPa), the installation form is thread
