Products > Hydraulic accessaries > > CIT-Inline check valve CIT-03

Product name : CIT-Inline check valve CIT-03

Item : 04

Enlarge Image

Back

←[Previous Product]

Details:

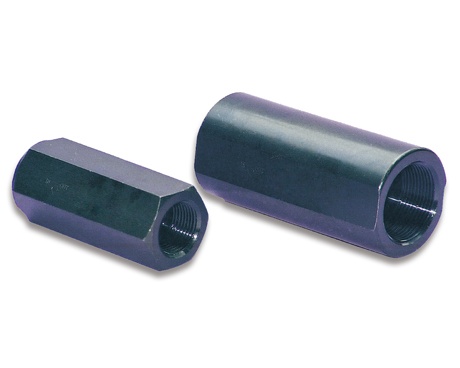

CIT-Inline check valve CIT-03

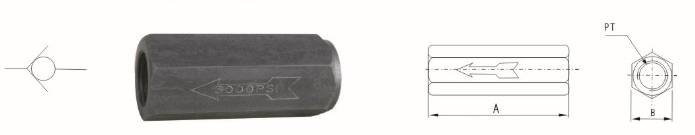

MODEL	PT	A(mm)	B(mm)	Flow (L/min)	Max pressure (kg/cm²)	Weight (kg)
CIT-03	3/8"	74	23	40	315	0.18
CIT-04	1/2"	81	29	60	315	0.33
CIT-06	3/4"	91	35	100	315	0.48
CIT-08	1"	114	46	150	315	1.10
CIT-10	1-1/4"	133	56	200	315	1.98
CIT-12	1-1/2"	134	66	280	315	2.78
CIT-16	2"	153	76.5	400	315	3.64

Hydraulic check valve CIT-02, check valve CIT-03, check valve CIT-04, check valve CIT-06,
check valve CIT-08, check valve CIT-10, check valve CIT-12, check valve CIT-16
Remarks: This valve crack presssure of CIT inline check valve are 0.5bar and 5bar.

The function of check valve CIT-04 in hydraulic system:

The one-way check valve CIT-06 of hydraulic system is also called back pressure valve, counter flow valve, check valve CIT-08 and one-way valve. This kind of hydraulic check valve CIT-16 is opened and closed automatically by the force generated by the flow of hydraulic medium in the hydraulic pipeline, which belongs to a kind of hydraulic automatic valve. Hydraulic one-way check valve CIT-10 is common in pipeline system. This kind of one-way check valve CIT-12 is mainly used to prevent reverse rotation of pump and its driving motor, backflow of medium, and discharge of liquid medium in the container.
