Products > Hydraulic valves > > Marine manual directional valve 35SFRE series 35SFRE-MO25-H3

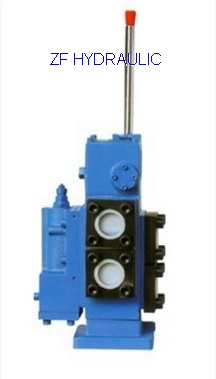

Product name : Marine manual directional valve 35SFRE series 35SFRE-MO25-H3
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
Marine manual directional valve 35SFRE series 35SFRE-MO25-H3
How to order:



Model

Nominal dia.mm

Nominal flowL/min

Nominal pressureMPa

Scope of safety valve pressureMPa

Handle control forceN

Mid-position pulley enginery

35SFRE-G15

15

60





21





521





≤40

M type

O type

35SFRE-G20

20

100

35SFRE-G25

25

200

35SFRE-G32

32

280

35SFRE-G40

40

380

35SFRE-G50

50

600

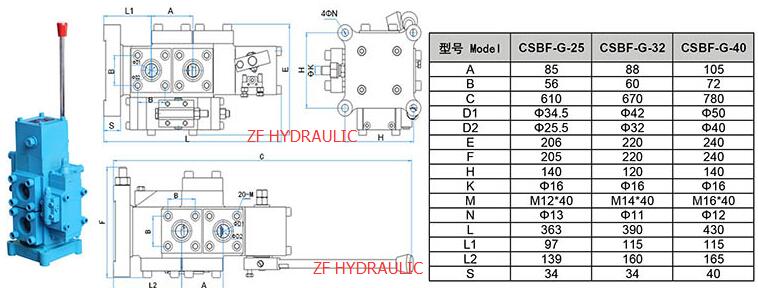

Drawing size:

1.35SFRE type manual reversing proportional compound valve is a three-position five-way reversing valve with pressure compensation, flow proportional adjustment and safety protection. The operating handle of the valve and the flow adjustment mechanism move synchronously, which can realize the infinitely variable speed, and has a good performance of reversing speed regulation; With pilot overflow valve, the user can set the highest working pressure according to the needs to ensure the reliability and safety of the system operation. The proportional composite valve is widely used in Marine machinery, hydraulic winch, hydraulic windlass. Details of the order are as follows:

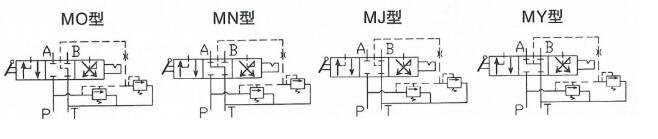

When unloading the middle function of the manual reversing proportional compound valve of type 35SFRE, please select the function of type M valve. The function code of segmentation is shown in the figure below:

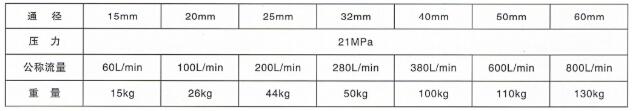

2. Description of the optimal working flow and weight of 35SFRE manual reversing proportional composite valve:


At the same time, our factory can provide specifications DN15 , DN25, DN32, DN40, DN60 combination valve. Rated working pressure can reach 32MPa, the flow rate is: 10L/min -- 800L/min, looking forward to working with you. Localized price, localized service, provide you with imported parts of the quality and reputation.

Marine manual directional valve 35SFRE series 35SFRE-MO25-H3
Marine manual directional valve 35SFRE series 35SFRE-MN25-H3
Marine manual directional valve 35SFRE series 35SFRE-MJ25-H3
Marine manual directional valve 35SFRE series 35SFRE-MY25-H3
Marine manual directional valve 35SFRE series 35SFRE-G15
Marine manual directional valve 35SFRE series 35SFRE-G20
Marine manual directional valve 35SFRE series 35SFRE-G25
Marine manual directional valve 35SFRE series 35SFRE-G32
Marine manual directional valve 35SFRE series 35SFRE-G40
Marine manual directional valve 35SFRE series 35SFRE-G50
