Products > Hydraulic valves > > DL-F15 type multiple directional valve
Product name : DL-F15 type multiple directional valve
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

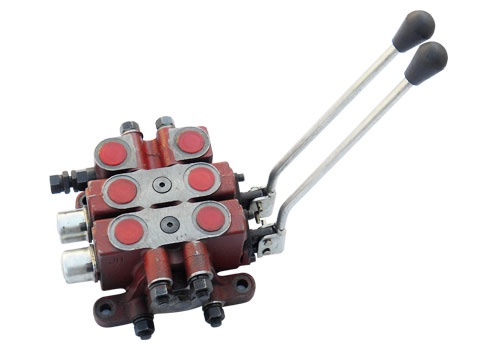

DL-F15 type multiple directional valve


Product introduction

D (F) L series multi-way directional valve has high working pressure, compact structure, small pressure loss, strong universality, fine tuning performance and good opening anDL-F20-04T.M6TJ type multiple directional valve, DL-F15-04T.M6TJ type multiple directional valve, DL-F20-04A.M6TJ type multiple directional valve
DL-F20-04B.M6TJ type multiple directional valve, DL-F15-04A.M6TJ type multiple directional valve
DL-F15-04B.M6TJ type multiple directional valved closing of overflow valve. Each belt has a one-way valve, which can prevent the flow of oil and other characteristics. This valve is mainly used in hydraulic system of ZL40 loader and small excavator and other construction machinery.

The valve can be composed of parallel, series, series parallel and compound oil circuit. The overload valve and oil filling valve can be inserted into any cavity of any connection, and the stable diverter valve can be installed on the oil intake body according to the hydraulic steering requirements of the main machinery.

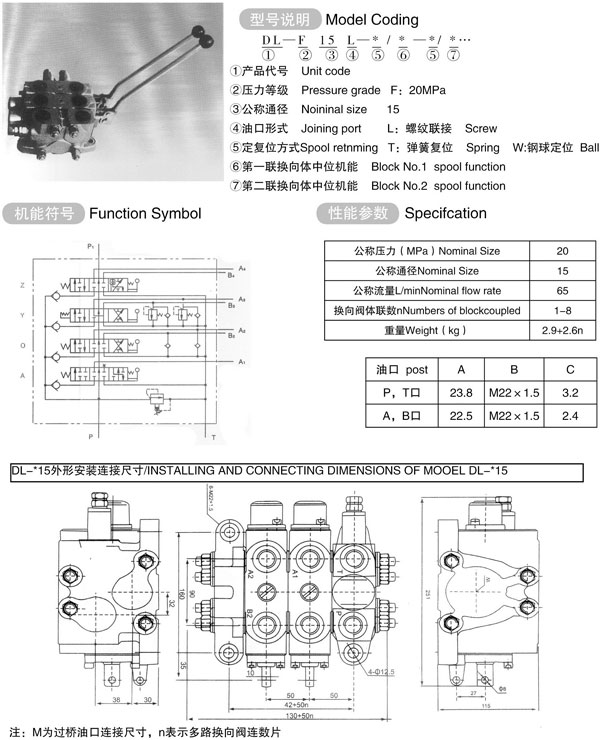

MODEL/NUMBER/SIZE

A

B

a

b

W

C

D

E

F

H

K

R

S

Φ

Φ

DL15

nW+a

nW+b

130

42

50

160

90

64

53

115

68

27

8

13

6

DL20

140

45

60

174

100

64

59

133

81

30

9

13

8

DL25

170

54

70

210

118

82

66

152

94

40

11.5

17

8



MODEL/NUMBER/SIZE

M

M1

L

La

L1

L2

L3

L4

Z

G

M2

N

T

U

V

DL15

M22×1.5

M14×1.5

La+lx

209

42

61

100

145

10

35

M22×1.5

55

30

68

32

DL20

M27×2

M14×1.5

La+lx

237

45

63





10

47

M27×2

61

36

81

40

DL25

M33×2

M14×1.5

La+lx

282

53

78

135

142

12

48

M33×2

69

36

94

5
