2P40 P40-2 2P40F-OT monoblock hydraulic directional control valve

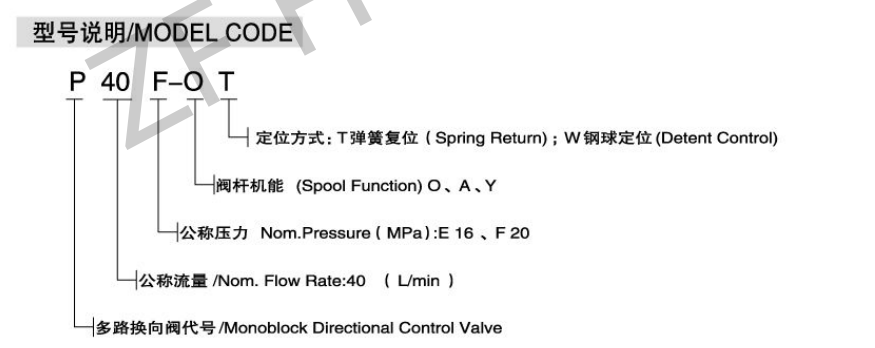

How to order:
Nom.Pressure
（MPa）
Max.Pressure
（MPa）
Nom.Flow rate
(L/min)
Max.Flow rate
(L/min)
Back pressure
（MPa)
Hydraulic oil
Tem.rang
(℃）
Visc.rang
(mm2/S)
Filtrating accuracy
(μm）
20
31.5
40
40
≤1
-20~+80
10-400
≤10

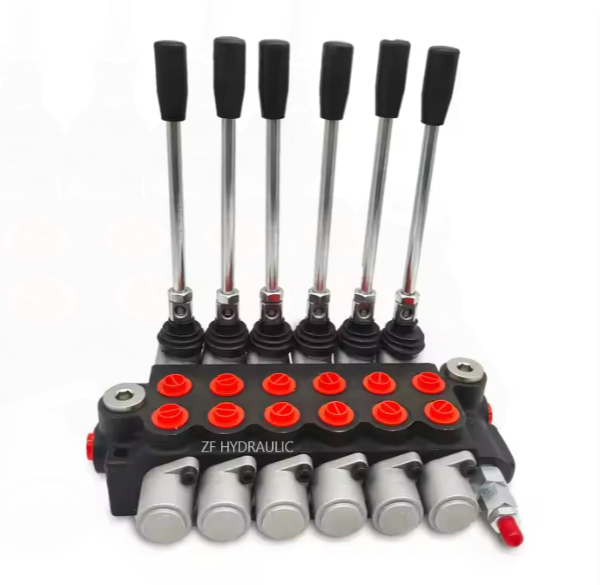

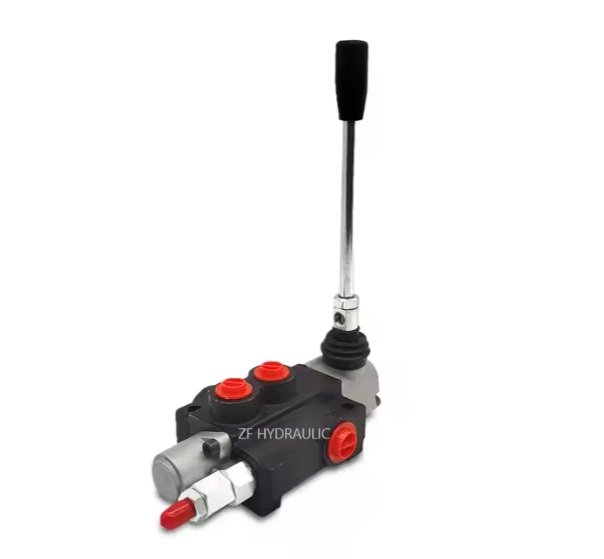

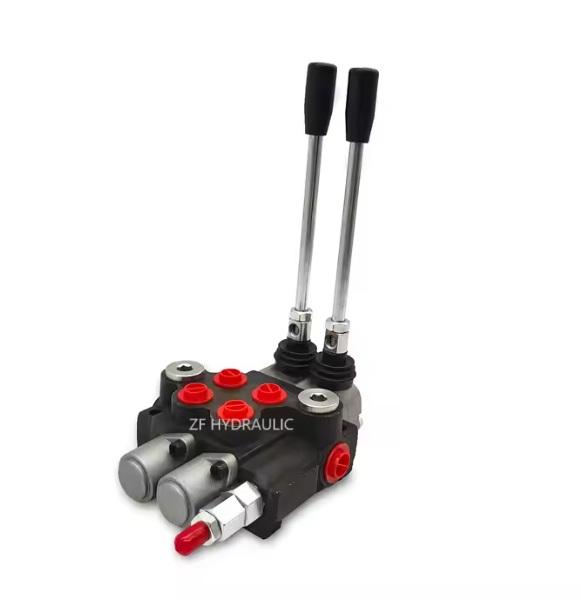

P40 series valves with middle-high pressure monoblock construction is develop based on Europe technology. Inner check valve:The check valve inside the valve body is to insure the hydraulic oil not to be returned. Inner relief valve:The relief valve inside the valve body is able to adjust the hydraulic system working pressure. Oil way:Parallel circuit,power beyond option Control way:Manual control,pneumatic control,hydraulic and electric control for optional. Valve construction:monoblock construction,1-7 levers. Spool function:O,Y,P,A Option:Hydraulic lock is available to be added on A and B port. Available with manual,pneumatic control,electric and pneumatic control,hydraulic and electric control and etc.
