Products > Oil cooler > > OR type oil cooler OR-100
Product name : OR type oil cooler OR-100
Item : 036
 Enlarge Image                   Back
             [Next Product]→


Details:
OR type oil cooler OR-100

How to order:

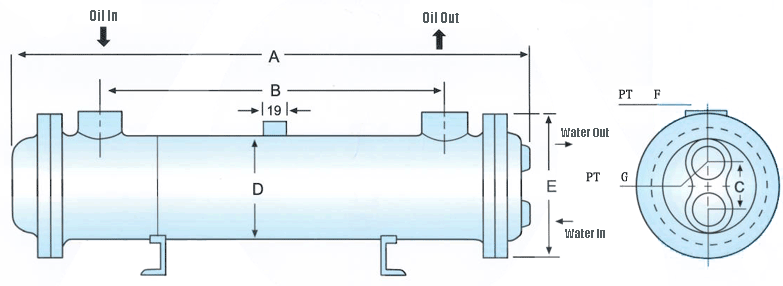

odel A B C D E F G Radiating pipe Cooling area (m2) Capacity of tank Weight (kg) Flow of pump (L/min) Water flow (L/min)
OR-60 465 295 40 89.1 120 ¾ ¾ 22 0.24 60 8 100 50
OR-100 540 370 55 114.3 140 ¾ ¾ 26 0.35 100 12 200 100
OR-150 580 375 65 139.8 170 ¾ 42 0.6 150 15 300 150
OR-250 800 600 65 139.8 170 ¾ 58 1.2 250 22 300 150
OR-350 1205 1000 65 139.8 170 ¾ 58 1.9 350 30 300 150
OR-600 1225 970 85 165.2 196 2 58 1.9 600 40 400 200
OR-800 1725 1470 85 165.2 196 2 58 2.8 800 50 400 200
OR-1000 2140 1890 85 165.2 196 2 58 3.5 1000 60 400 200
OR-1200 2520 2270 85 165.2 196 2 58 4.2 1200 70 400 200

Models: oil water cooler OR-60, oil cooler OR-100, hydraulic oil cooler OM-150, hydraulic oil water cooler OR-250, oil cooler OR-350, oil cooler OR-600, water cooler OR-800,
oil cooler OR-1000, oil cooler OR-1200
ZF hydraulic is a water cooler manufacturer, welcome to order! Our company specializes in the production of OR row tube cooler, CL spiral cooler, water cooler, air cooler, can be customized non-standard cooler, product series perfect, complete size specifications. Internal use of pure copper pipe, thermal conductivity of 0.95 or more, thermal conductivity is good, according to different customer needs, derived from the stainless steel liner cooler. Widely used in metallurgy, petroleum machinery, mining machinery, machine tools, chemical, electrical, textile, paper, construction and other industries in the hydraulic, lubrication system and heat transfer cooling system, the working medium heat transfer to the specified temperature.
ZF hydraulic OR series OR-60 water cooler has no leakage: the plate and tube and the body adopt an integrated design, can avoid the trouble of water and oil mixing, at the same time in the factory before the air tightness test is really close, so it can achieve the purpose of leakage prevention;
Easy assembly:The foot pedestal rotates 360 degrees freely, and the cooler is assembled by changing direction and Angle at will. The foot pedestal can be directly welded to any position of the mother machine or oil groove, which is convenient and simple.
OR-60 cooler flow 60L, heat transfer area 0.26m2. High heat transfer efficiency and good cooling effect.
Other models: oil water cooler OR-60, oil cooler OR-100, water cooler OR-150, oil water coolerOR-250, hydraulic oil water cooler OR-350, OR-600, oil water cooler OR-800, OR-1000, oil cooler OR-1200.
