Products > Gear pump > > HGP-1A series type gear pump
Product name : HGP-1A series type gear pump
Item : 05
 Enlarge Image                   Back
←[Previous Product]


Details:
HGP-1A Gear Pumps (HGP-1A) HGP-1A-F2R

Features
HGP-1A Gear Pump function well under high temperature with Viton’s seal. It can also run under high pressure with the oil less bearing design.
Model Definition
HGP-1A
-F
8
-R
-X
-2B
Series
Installation Type
Displacement
(cc/rev)
Input Rotation
Input Shaft
Front Flange Cover
Gear Pump 1A Series
F: Flange Mounting
L: Foot Mounting
1:1
2:2
3:3
4:4
5:5
6:6
8:7.8
R: Clockwise
L: Anti-clockwise
X: Straight Keyed
Y: Spline
2B : SAE 2-Bolt
4BD: DIN 4-bolt
4DE: European 4-bolt
Specification
Model
Displacement
(cc/rev)
Pressure
(bar)
Speed
(RPM)
Weight
(kg)
Rated
Max.
Rate
Min.
Max.
HGP-1A-F1
1
210
250
1800
1000
4500
1.00
HGP-1A-F2
2
600
4500
1.05
HGP-1A-F3
3
600
4500
1.15
HGP-1A-F4
4
600
4500
1.18
HGP-1A-F5
5
600
3200
1.20
HGP-1A-F6
6
600
3200
1.30
HGP-1A-F8
7.8
175
210
600
3200
1.40


Outside size:





定量齿轮泵定量齿轮泵定量齿轮泵


Gear pump models:
Gear pump HGP-1A-F1R, gear pump HGP-1A-F1L, hydraulic gear pump HGP-1A-F2R, gear pump HGP-1A-F2L, gear pump HGP-1A-F3R
Gear pump HGP-1A-F3L, gear pump HGP-1A-F4R, oil gear pump HGP-1A-F4L, gear pump HGP-1A-F5R, gear pump HGP-1A-F5L
Gear pump HGP-1A-F6R, gear pump HGP-1A-F6L

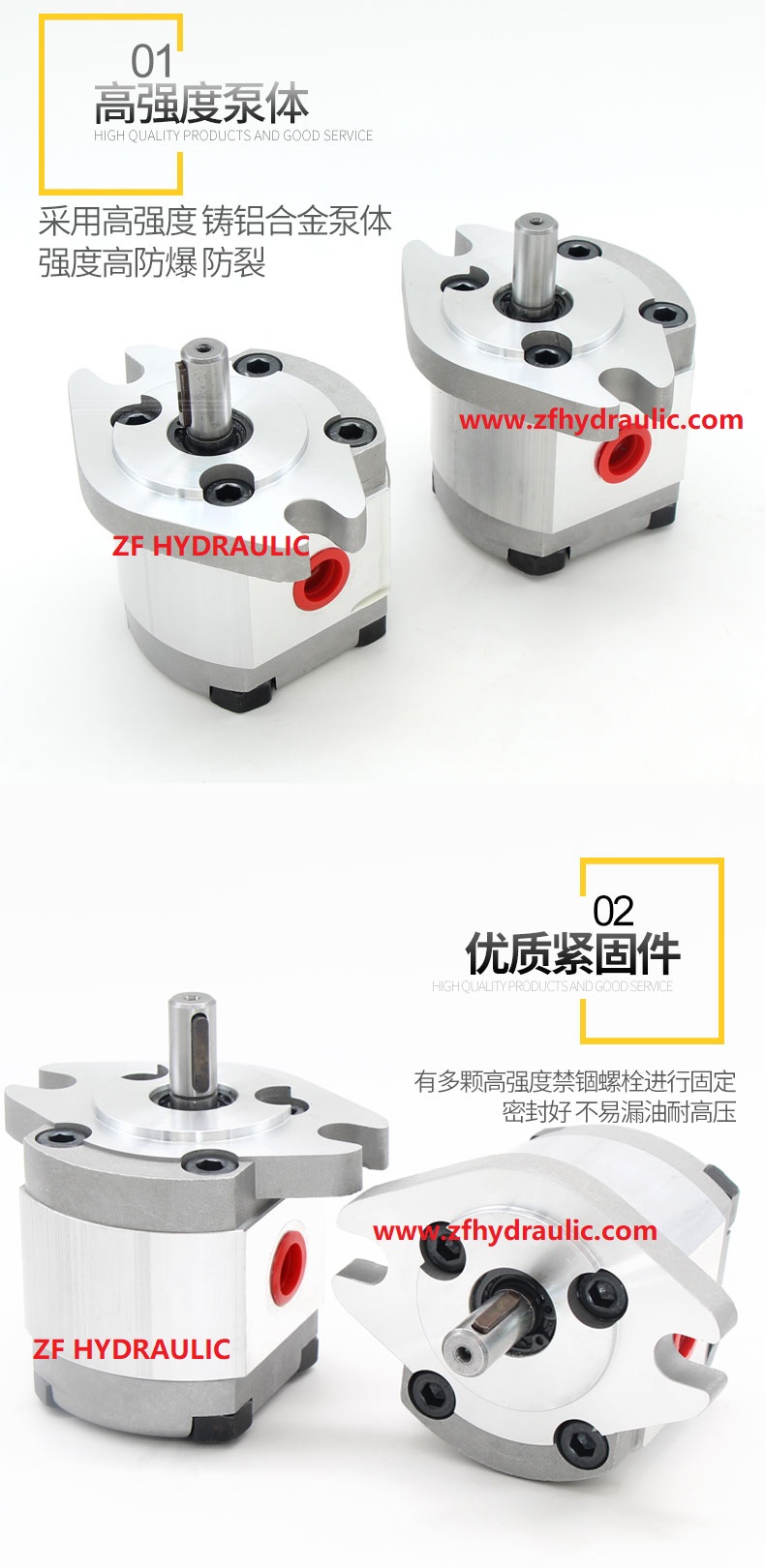

This gear pump with high strength pump body, using high strength cast aluminum alloy pump body, high strength explosion-proof anti-crack.
There are several high strength fastening bolts for fixing, sealing well, not easy to leak and resistant to high pressure.

What are the advantages of corrosion resistance of small flow gear pump?
Corrosion resistant small flow gear pump HGP-1A-F3R is widely used in machine tools with low precision and hydraulic systems with low pressure. What are the advantages of the gear pump HGP-1A-F6R?
A: The gear oil pump has the advantages of low cost, simple structure and good process performance;
B: The gear pump HGP-1A-F8R has a wide range of rotating speed, when the gear pump HGP-1A-F1R is rotating at high speed, the inertia force is very small;
When the gear pump HGP-1A-F2R is running, the cleanliness of the oil has little influence on it; at the same time, the gear pump will have reliable self-priming performance when working at high and low speed; compared with other pumps, the gear pump HGP-1A-F4R has compact structure and small volume when the flow is the same.
